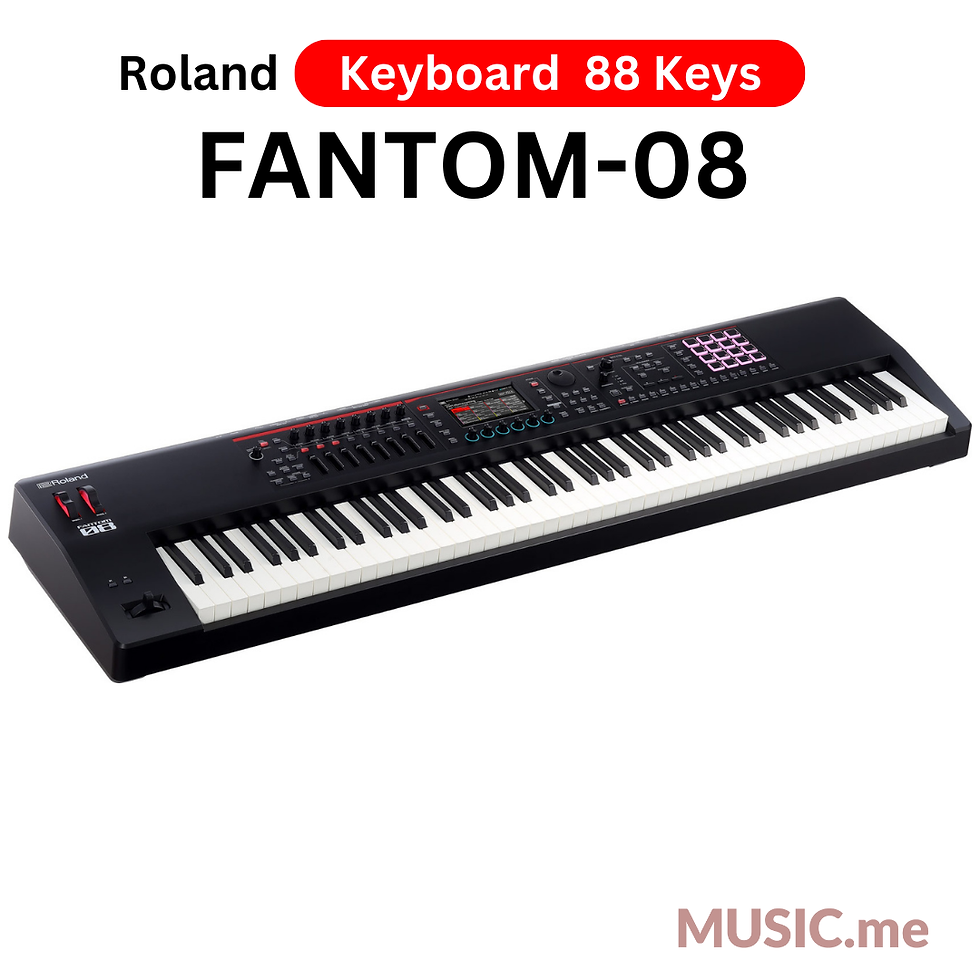

Roland FANTOM-08
คีย์บอร์ด Roland FANTOM-08
Synthesizer Keyboard
Unify your creative vision.

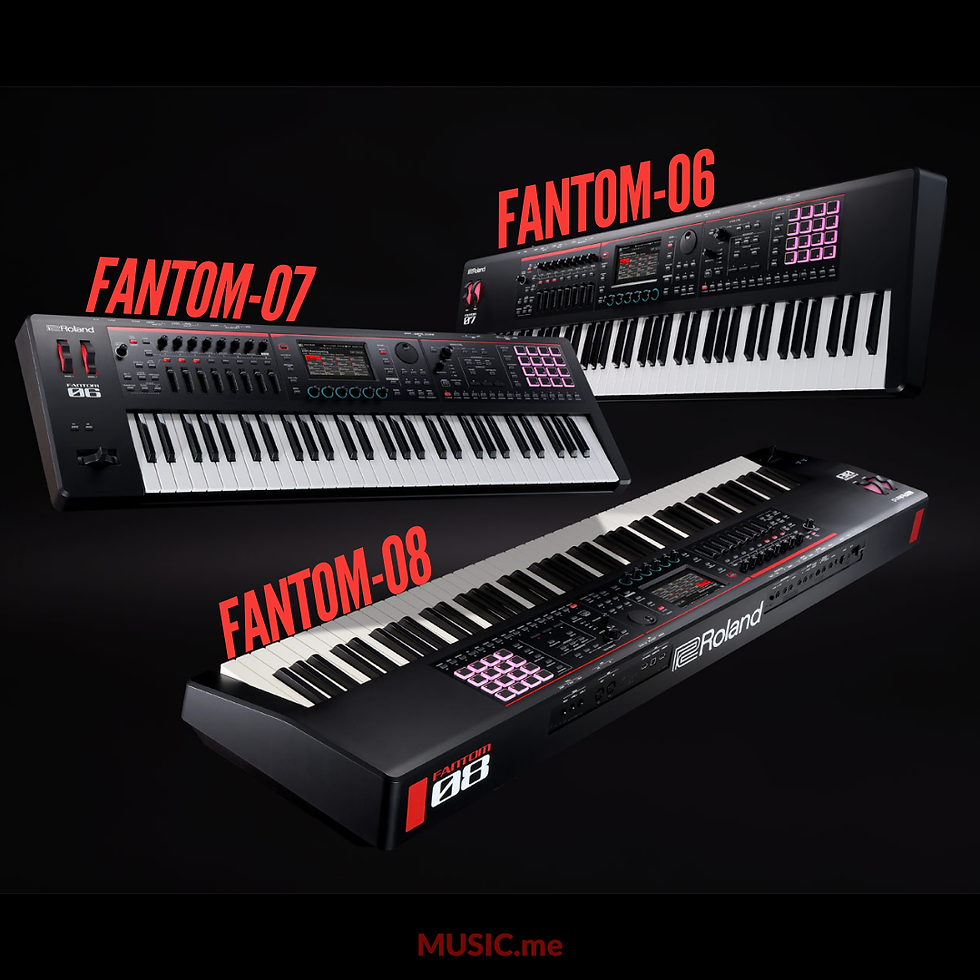

FANTOM-0 brings your creative world together, combining the sonic power and fluid workflow of the top-of-the-line FANTOM series in streamlined instruments that go everywhere your inspiration takes you.
Equipped with a newly designed 76-note keyboard, FANTOM-07 has everything you need to create and perform at the highest level. Play and produce with thousands of Roland’s best sounds and unleash your musical vision with a color touchscreen, hands-on controls, and deep computer integration derived from the flagship models.
คีย์บอร์ด Roland FANTOM-08 Synthesizer Keyboard
KEYBOARDKeyboard88 Keys (PHA-4 Standard Keyboard: with Escapement and Ivory Feel)SOUND GENERATORTONEZEN-Core
SuperNATURAL Acoustic
SuperNATURAL Acoustic Piano (EXSN01/03 Preload)
SuperNATURAL Electric Piano (EXSN02 Preload)
VTW Organ (Only ZONE2)
Various MODEL sound generators (Require adding EXM Series)* ZEN-Core Tones and Model Tones can import and export.
* Backup file has compatibility with FANTOM-6/7/8, but it can read the enabled features only.ExpansionEXZ Series
EXSN Series
EXM Series* The expansion are rewritable internal sound generator memory.
You can download data from the Roland Cloud and write it via a USB flash drive into the FANTOM’s internal memory.Parts16 zones (Internal + External)Scenes128 scenes x 4 bank* The Scenes can import and export.Tones3,500 tones or greater
90 Drum kits or greaterTone Remain8 zones
* When “Scene Remain Switch” enabled.
Tone Remain does not apply to VTW Organ sounds.FavoriteRating System: 4 steps (0-3)Tone Search/Scene SearchRating, CharacterEffectsMulti-Effects: 16 systems, 90 types
Part EQ: 16 systems
Drum Part COMP: 6 systems
Insertion Effect: 2 systems, 90 types (Serial/Parallel connection selectable)
TFX: 1 system, 90 types
Input MFX: 1 system, 90 typesChorus: 9 types
Reverb: 7 types
Master Compressor
Input Reverb: 7 types
Input EQ: 1 systemVocoderBand: 13, 20, 32
Type: Mono, Stereo
Preset Setting: 10
User Setting: 20Scene ChainChain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
Set: 100
Marker: 36 (0-9, A-Z, a-z) per 1 Chain SetPATTERN SEQUENCERMIDI Tracks16Group16Pattern8 (per each track)Pattern Length64 measuresRecording MethodRealtime recording, Step recording, TR-RECEditing MethodPiano roll edit (Touch Edit/Automation support), MicroscopeSong1 (per Scene)File formatOriginal, SMF export/import supported* PAD Sampler trigger data can be recorded.SMF PLAYERFormatSMF (Format 0/1)MIDI tracks16Tempo range5-300 BPMTranspose function-5-+6 semitoneTrack MuteYesTrack SoloYesA/B loop functionYes
* The pattern sequencer and SMF player can be used in each scene.
They cannot be used at the same time.SAMPLER – KEYBOARD MULTISAMPLEFormat16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported.Number of Samples2,048Number of Multisamples128Sampling TimeThe maximum is 2 minutes 44 second (1 Sample).* A total of approximately 256 MB (Share with Expansion titles)
* Keyboard Multisample can import and export as ZEN-Core Tone.SAMPLER – PAD SAMPLERFormat16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supportedMaximum Polyphony8Number of Samples16 pads x 4 banksSampling TimeThe maximum is 60 minutes (the equivalent of approximately 660 MB).* A total of approximately 2 GB (including imported WAV files)
* When you use the PAD samples as KBD Wave, then you have to manipulation it.SAMPLER – INTERNAL STORAGE SPACE FOR FILESSize2 GBOTHERSRhythm PatternYesArpeggiatorYesChord MemoryYesMotional PadYesPAD ModeSample Pad,Note Pad,Partial Sw/Sel,DAW Control,Zone Mute,Zone Solo,Kbd Sw Group,Rhythm Pattern,Pattern,Variation Play,Group PlayAIRA LINK* When connect to MX-1ControllersPitch Bend/Modulation lever *1
Assignable Switch x 2 (S1/S2)
Control knob x 8
Slider x 8
Wheel x 2 *1
Function knob x 6
Sound Modified knob x 2 *1
4 x 4 Pad*1: 1,024 step editing support
It can be use with Cutoff, Resonance.DisplayGraphic Type, 5.5″ (1,280 x 720 dots), backlite LCD (Color/Touch screen, Screensaver, Wallpaper support)ConnectorsHeadphones jack: Stereo 1/4-inch phone type
MAIN OUT jacks (L/MONO, R) (1/4-inch TRS type)
SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
SUB OUT STEREO (PHONES) jacks: Stereo miniature phone type PHONES Support
Mic Input jacks: 1/4 inch TRS type
Line Input jacks: (L/MONO,R) (1/4 inch phone type)
FOOT PEDAL jacks(HOLD, CTRL1, CTRL2)
MIDI connectors (IN, OUT)
USB MEMORY port
USB COMPUTER port (AUDIO/MIDI)
External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.Audio InterfaceMax 24 bit/96 KHz
Record 16 Stereo Channel
Playback 2 Stereo ChannelExternal MemoryUSB Flash drive (sold separately)Power SupplyAC AdaptorPower Consumption1,300 mAhAccessoriesOwner’s Manual
AC adaptorOptions (sold separately)Keyboard Stand:
KS-G8B, KS-10Z, KS-12, KS-20X
Pedal Switch: DP series, RPU-3
Expression Pedal: EV-5
USB Flash driveSIZE AND WEIGHTWidth1,393 mm
54-7/8 inchesDepth354 mm
13-15/16 inchesHeight138 mm
5-7/16 inchesWeight14.8 kg
32 lbs 11 oz
