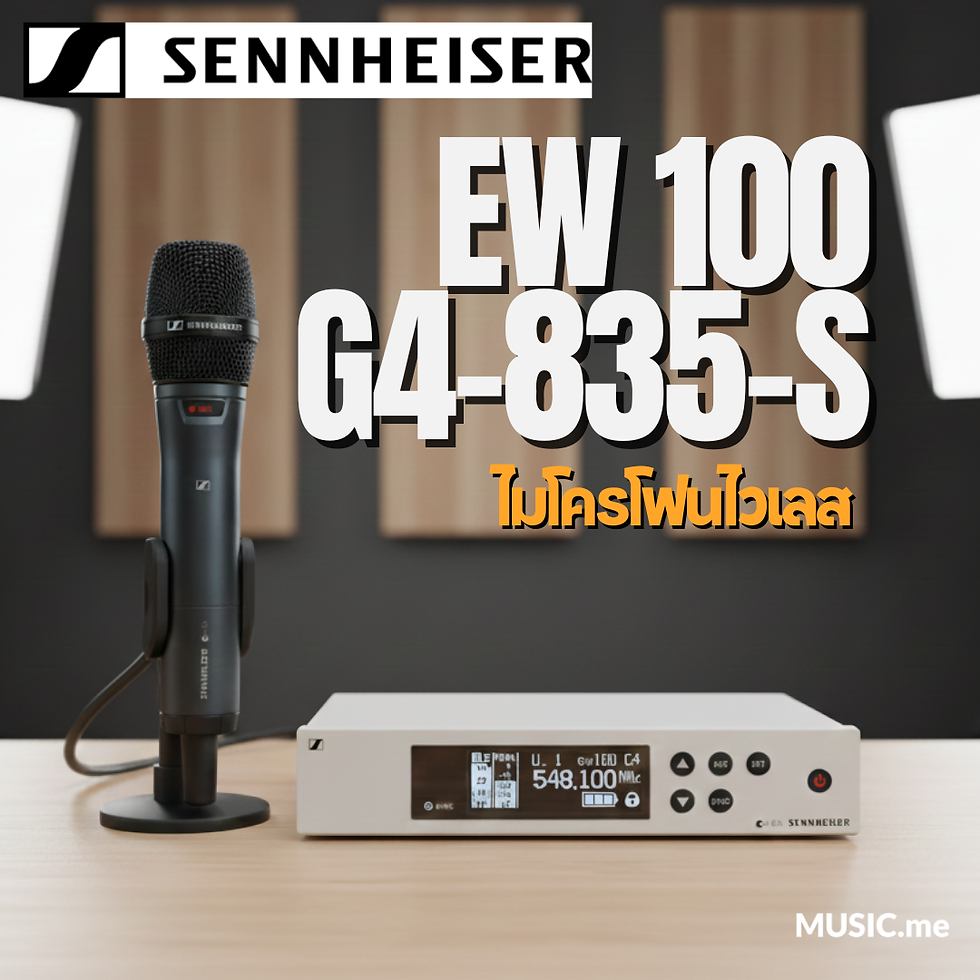

Sennheiser EW 100 G4-835-S Wireless Microphone System
Sennheiser EW 100 G4-835-S Wireless Microphone System
Sennheiser EW 100 G4-835-S Wireless Microphone System
The Sennheiser EW 100 G4-835-S is a professional-grade wireless microphone system ideal for singers, presenters, theatres, houses of worship, and live performances. The set includes the SKM 100 G4-S handheld transmitter with a cardioid dynamic e835 capsule, the EM 100 G4 half-rack receiver, the GA3 rackmount kit, an RJ10 linking cable, and a mic clip — designed for easy setup, fast configuration, and full compatibility with previous G4 series systems.
🔥 Key Highlights
-
True Diversity reception ensures highly stable RF performance in a durable metal chassis
-
One-touch frequency scan & sync (IR sync) between transmitter and receiver
-
Supports multi-channel daisy-chain setup up to 12 systems via the Link function + included RJ10 cable
-
Up to 20 frequency banks and 1,680 tunable UHF frequencies (42 MHz bandwidth)
-
Operating range up to 100 m (environment-dependent)
-
RF output power up to 30 mW (subject to local regulations)
-
High-contrast LCD display and blue sync LED, optimized for low-light environments
🎤 Ideal Applications
-
Live stages, music venues, clubs
-
Theatres & drama productions
-
Churches, lecture halls, public speaking
-
Events & professional AV setups requiring reliable wireless audio
📦 What’s Included
-
EM 100 G4 Half-Rack Receiver
-
SKM 100 G4-S Handheld Transmitter (with Mute switch)
-
MMD 835-1 (e835) cardioid dynamic capsule
-
GA3 rack mount kit
-
RJ10 linking cable
-
Microphone clip
-
User manual
⚙ Key Specifications (Summary)
-
Frequency range (example unit): 748.2 – 757.8 MHz
-
Switching bandwidth: up to 42 MHz
-
Selectable frequencies: 1,680 (25 kHz steps) / 20 banks
-
RF output power: up to 30 mW
-
Range: up to approx. 100 m (line-of-sight)
-
S/N ratio: ≥ 110 dBA
-
THD: ≤ 0.9%
Receiver (EM 100 G4)
-
Outputs: XLR (balanced) +18 dBu, 1/4" (unbalanced) +12 dBu
Handheld Transmitter (SKM 100 G4-S)
-
Battery: 2 × AA or BA 2015 accupack
-
Operating time: ~8 hours typical
Capsule (MMD 835-1)
-
Dynamic cardioid
-
Max SPL: 154 dB
-
Sensitivity: 2.1 mV/Pa
Operating Temperature: –10°C to +55°C
📌 Usage Notes / Recommendations
-
Link function greatly simplifies multi-mic frequency coordination — highly recommended for multi-set stage installs
-
Always check local RF frequency regulations before use
-
Use high-quality AA batteries or the Sennheiser rechargeable pack for best performance and reliability
-
